We supply Polypropylene Pumps.

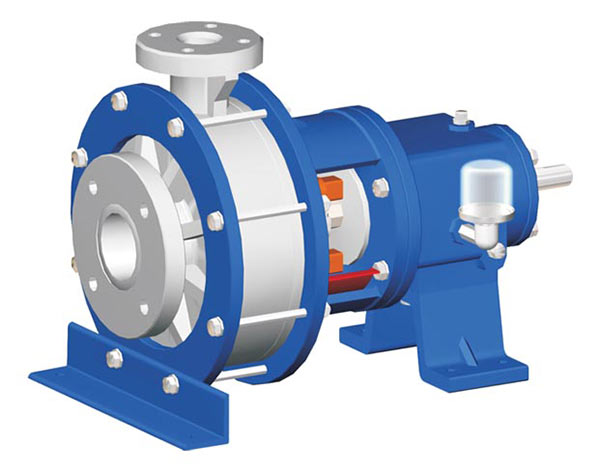

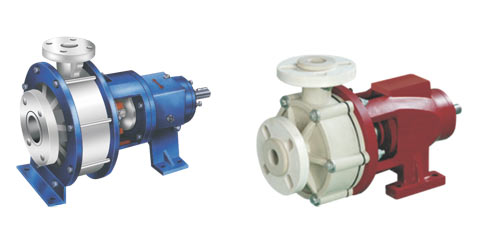

Polypropylene Pumps
-
Polypropylene Pumps
APPLICATION :
Dilute sulphuric acid, concentrate HCL, Electroplating solutions, caustic soda, seawater / brine solution, bleach liquors, chlorinated water, pickling solution, dyestuff-filter press, water effluent treatment, etc.DESIGN :
Horizontal, radially, split, one piece volute casing design, fitted with semi open impeller, Single entry, Single stage & accordance with PIN 24256 / ISO 2858 ?ISO 5199SALIENT FEATURES :
- Desiigned to suit extremely corrosive duties in the process and chemical industries.
- Metallic Performance in Non metallic material.
- GRP pump moulding at High pressure by solid compression moulding, hence no chance of porosite, cracking.
- Minimum wear & tear.
- Heat resistence upto 150°C
- Provision of Mech. seal / Gland packing.
MATERIALS :
Casing | : GRP, Impeller : GRP with S.S insert, |
Shaft Sleeve | : GRP, Ceramic, Alloy-20, Hastalloy B/C, |
Bearing Pedestal | : CI-GRFG-260, Shaft - S.S. EN-8, Double ball bearing |
OPERATING RANGE :
Type | Size | HP/RPM | Head / M³/ Hr | ||||
---|---|---|---|---|---|---|---|
M-100 | 25x25 | 1/2900 | 7/11 | 10/9 | 11/5 | 12/3 | 13/100 |
M-120 | 40x40 | 2/2900 | 10/24 | 12/20 | 15/12 | 16/8 | 18/00 |
M-130 | 50x40 | 3/2900 | 8/30 | 12/24 | 18/12 | 20/8 | 23/00 |
M-50 | 75x40 | 3/1400 | 6/40 | 8/30 | 10/23 | 13/10 | 15/00 |
M-50R | 40x40 | 2/1400 | 5/25 | 8/12 | 10/06 | 11/2 | 12/00 |
M-55 | 50x40 | 5/1400 | 10/37 | 12/28 | 14/20 | 17/6 | 18/00 |
M-160R | 40x40 | 3/2900 | 22/10 | 15/14 | 18/10 | 22/3 | 24/00 |
M-160 | 75x40 | 5/2900 | 10/48 | 15/41 | 20/28 | 25/20 | 33/00 |
M-170 | 75x50 | 7.5/2900 | 15/52 | 20/38 | 25/28 | 30/25 | 36/00 |
M-40 | 50x40 | 10/2900 | 15/51 | 125/42 | 35/30 | 40/13 | 50/00 |
