Rotary Gear Pumps

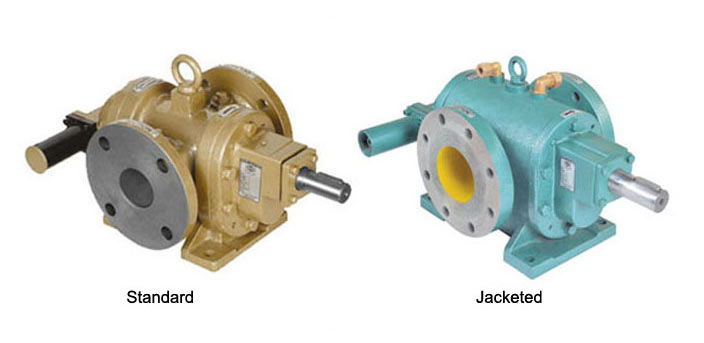

This series contain general purpose foot mounted pump with flange mounting at the inlet and outlet ports. Material of construction* of pump body : Graded CI Casting. Gears : Alloy Steel -double Helical - H. Nitrided. Shaft : Alloy Steel -Hardened & ground. Bearing & Bushes : Needle Roller bearing(FTRN). Sealing :Oil Seal/Teflon base 'Z' pack. Size : ½” to 6” (8 different sizes) Range : 0.50 to 200 m²/Hr. Liquid : Cude oil, kerosene, LDO, HSD, Wood Pulp, Furnance oil etc. Viscuosity up 1,00,000 SSU, temperature upto 200°C. In buit Pressure Relief valve is provided to achieve maximum working pressure 10kg/cm².

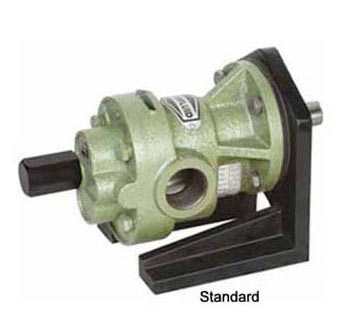

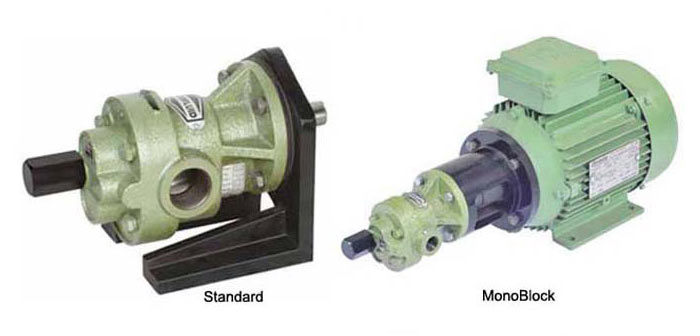

This series contain general foot mounted with 'L' bracket & Flange mounted general purpose pumps having femle threading at the inlet and outlet ports. Material of construction* of pump body : Graded CI Casting. Gears : Alloy Steel -single Helical. Shaft : Alloy Steel - Hardened & Ground. Bush : Self Lubricated Sintered Bronze Bushes. Sealing :Oil Seal. Size : ¼” to 2½” BSP (8 different sizes)Range : 2.5 to 350 LPM. Liquid : All General Purpose Viscous fluid like Lub oil, Paints, transformer oil, LDO etc. The Maximum working pressure is 10 kg/cm².

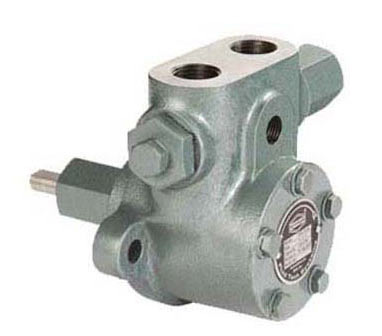

This series contains Fuel pressuring internal gear type foot mounted pump with flange of threading at the inlet and outlet ports. Material of construction* of pump body : Graded CI Casting. Shaft Rotor : Alloy Steel - H. Nitrided & Ground. Idler Gear : Alloy Steel - H. Nitrided. Sealing : Mechanical Sealing. Size : ½” to ¾” BSP Range : 60 to 2500 LPM. Liquid : Full boilers burners. In built pressure relief valve is provided & pump Perates uto to maximum temperature 200°C(Fuel) and maximum working pressure 35kg/cm².

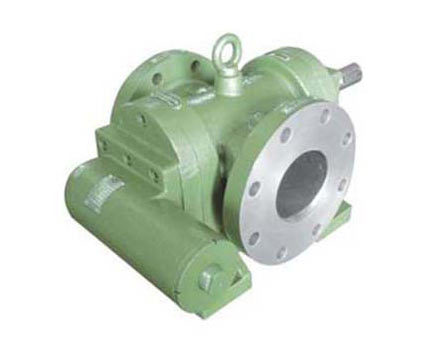

This series contains foot mounted Special purpose pumps having flange mounting at the inlet and outlet ports. Material of construction* of pump body : SS-316(FTMS). Gears : SS-316 Double Helical -H Nitrided(FTMS)/ SS-316 Single Helical - H. Nitrided (FTM), Sealing : Teflon base 'Z' pack. Size : ½” to 6” BSP Range : 12 to 2000 LPM. Liquid : Liquids used in boilers & burners, Crude oil, Tar etc. FTMS Series contains in built pressure relief valve. The pumps are used to handle corrosive, Thinner or Thicker liquids having lesser lubricating valve. The maximum working pressure is 10kg/cm².

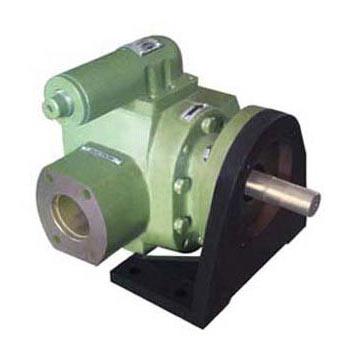

This series contains special purpose foot mounted pump with flange and thread end at inlet and outlet ports. Material of construction* of pump body : Graded CI Casting. Gears : Alloy Steel - double Helical - H. Nitrided. Shaft : Alloy Steel - case Hardened & ground. Bears & Bushes : Needle Roller bearing (FTNX) Bronze Bushes (FTBX). Sealing : Olil Seal/teflon base 'Z' pack. Size : ½” to 4 (6 different sizes)Range : 0.30 to 54m³/Hr. Liquid : Crude oil, dirty oil, kerosene, LDO, HSD, Wood Pulp, Furnance oil etc. Viscosity upto 1,00,000 - SSU, temperature - upto 200°C. In built pressure relief valve is provided to achieve maximum working pressure - 21 kg/cm².

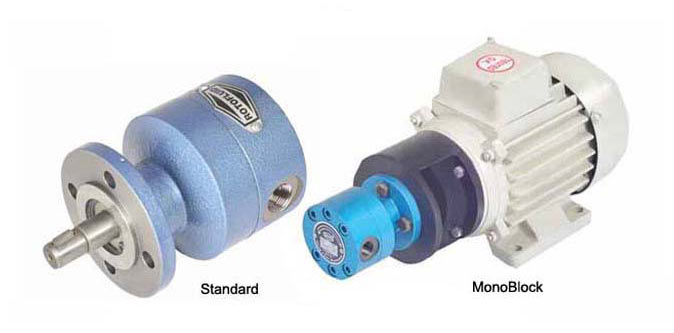

This series contains flange mounted and shaft mounted pumps having female threading at inlet and outlet ports. Material of construction* of pump body : Graded CI Casting. Rotor : Sintered CI Casting. Shaft : Alloy Steel. Sealing : Oil Seal. Size : ¼ to ¾ BSP (8 different sizes)Range : 0.5 to 40LPM at 1500 RPM(40°C). Liquid : Lubricating oil. The Pumps are designed to transfer the lubricating oil with maximum working pressure - 10 kg/cm².

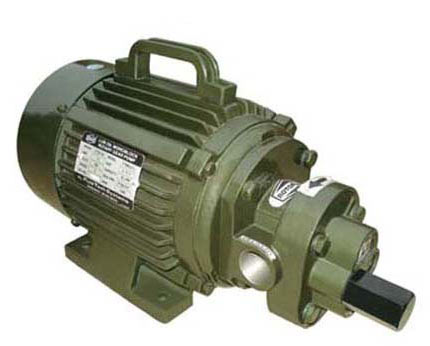

Model FTMB

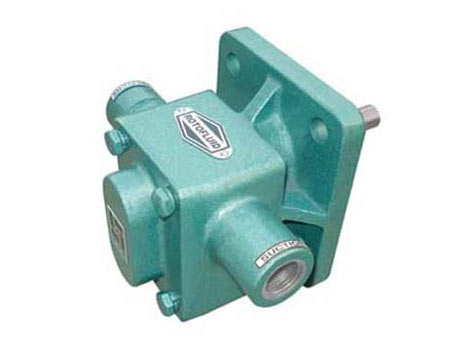

Model FTCP

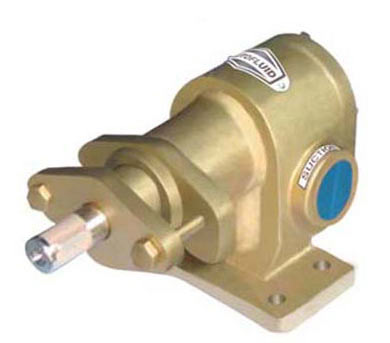

Model FTGM

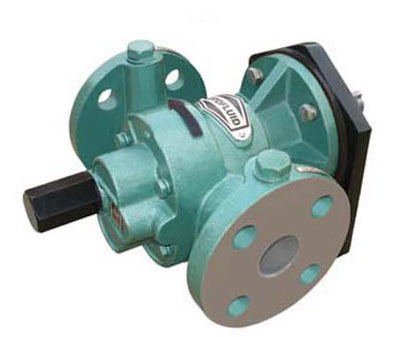

Model FTFX
